中华临床实验室管理电子杂志 ›› 2026, Vol. 14 ›› Issue (01) : 58 -65. doi: 10.3877/cma.j.issn.2095-5820.2026.01.011

论著

基于风险导向抽样的血糖POCT协同质量管理体系构建
于洋1, 贾珂珂1, 乔蕊1, 宋涵超2, 陈薇薇,3(), 范雯怡,2()
  1. 1 1100191 北京,北京大学第三医院检验科
    2 1100191 北京,北京大学第三医院医务处
    3 1100191 北京,北京大学第三医院工程处
  • 收稿日期:2026-01-20 出版日期:2026-02-28
  • 通信作者: 陈薇薇, 范雯怡

Establish of a collaborative quality management system for blood glucose POCT based on risk-oriented sampling

Yang Yu1, Keke Jia1, Rui Qiao1, Hanchao Song2, Weiwei Chen,3(), Wenyi Fan,2()

  1. 1 Department of Clinical Laboratory, Peking University Third Hospital, Beijing 100191, China
    2 Medical Department, Peking University Third Hospital, Beijing 100191, China
    3 Engineering Department, Peking University Third Hospital, Beijing 100191, China
  • Received:2026-01-20 Published:2026-02-28
  • Corresponding author: Weiwei Chen, Wenyi Fan
引用本文:

于洋, 贾珂珂, 乔蕊, 宋涵超, 陈薇薇, 范雯怡. 基于风险导向抽样的血糖POCT协同质量管理体系构建[J/OL]. 中华临床实验室管理电子杂志, 2026, 14(01): 58-65.

Yang Yu, Keke Jia, Rui Qiao, Hanchao Song, Weiwei Chen, Wenyi Fan. Establish of a collaborative quality management system for blood glucose POCT based on risk-oriented sampling[J/OL]. Chinese Journal of Clinical Laboratory Management(Electronic Edition), 2026, 14(01): 58-65.

目的

针对大型医院即时检测(POCT)血糖设备数量庞大、质量均质化管理难及隐蔽性风险难识别的痛点,验证“风险导向抽样+技术评估”策略在识别系统性风险及指导管理决策中的价值。

方法

建立四方联动机制,引入公共卫生“风险预警”理念,实施风险导向抽样,从北京大学第三医院850余台POCT血糖仪中筛选出115台(约13.5%)具有“饱和运行”或“设备性能微衰减”特征的设备作为风险导向设备,以全自动生化分析仪作为参比,采用5个浓度梯度的新鲜静脉血进行现场比对,Bland-Altman法评估偏倚,进行风险溯源与干预。

结果

3种品牌血糖仪与生化分析仪的相关性良好(r>0.99),但在生化分析仪测定值13.1 mmol/L处,经Bland-Altman分析显示,品牌Q和H存在系统性负偏倚(bias分别为-0.403 mmol/L、-0.688 mmol/L),相对偏差范围分别达-16.79%~-7.63% 和-17.56%~-9.16%,局部点位突破了常规±15%误差限。尽管依据常规标准3种品牌的总体合格率均为100%,但该策略成功识别出隐匿的浓度依赖性偏倚。数据分析揭示,在相同实验工况下,不同品牌检测系统在高浓度区间呈现出显著的响应特征不一致性。

结论

本策略证实了风险导向抽样策略在有限的医疗资源投入下,能有效地甄别出常规合格率评价所掩盖的、特定品牌设备在高浓度区间系统性负偏倚特征,研究结果为医疗机构对POCT血糖设备实施动态校准(纠正系统性偏倚)、制定科学的淘汰标准、实施靶向临床督导(规避潜在的误差累积)提供了管理策略的循证支撑。

Objective

To address the challenges posed by large number of the point of care testing (POCT) equipment for blood glucose in large-scale hospitals, homogeneous quality management and concealed risks, this paper verified the practical value of 'isk-oriented sampling combined with technical evaluation' strategy for detecting systematic risks and guiding management decisions.

Methods

Four-party collaboration mechanism was established, risk-oriented sampling was conducted and public health "risk early warning" theory was introduced. From over 850 POCT glucose meters throughout the hospital, 115 devices (around 13.5%) exhibiting characteristic of "saturation operation" or "minor performance degradation" were selected as risk-oriented devices. Using the fully automatic biochemical analyzer as the reference method, fresh venous blood samples at five different concentration gradients were tested for on-site comparison. Bias was assessed using Bland-Altman analysis, followed by risk tracing and intervention.

Results

The results showed that correlation coefficients (r) of the three brands of glucose meters and the biochemical analyzer were all above 0.99. However, at a biochemical analyzer measurement value of 13.1 mmol/L, Bland-Altman analysis results showed systematic negative bias in Brand Q and H (bias of -0.403 mmol/L and -0.688 mmol/L respectively) and the relative bias ranges were -16.79% to -7.63% for Brand Q and -17.56% to -9.16% for Brand H, with a few points exceeding the conventional ±15% error limit. Although an overall pass rate of 100% was achieved for all the three brands based on conventional standard, this strategy successfully identified the concealed concentration-dependent bias. The data analysis revealed that under the same experimental conditions, detection systems of different brands showed significant response inconsistency at high concentration ranges.

Conclusions

The strategy validated that with limited healthcare resource, risk-oriented sampling was able to effectively identify the systematic negative bias at high concentration ranges for devices with specific brands, which is concealed by conventional pass rate evaluation. These findings provide an evidence-based foundation for management strategy on implementing dynamic calibration of blood glucose POCT devices (to correct systematic drift), establishing of scientific retirement criteria, and implementing of targeted clinical supervision (to mitigate potential error accumulation).

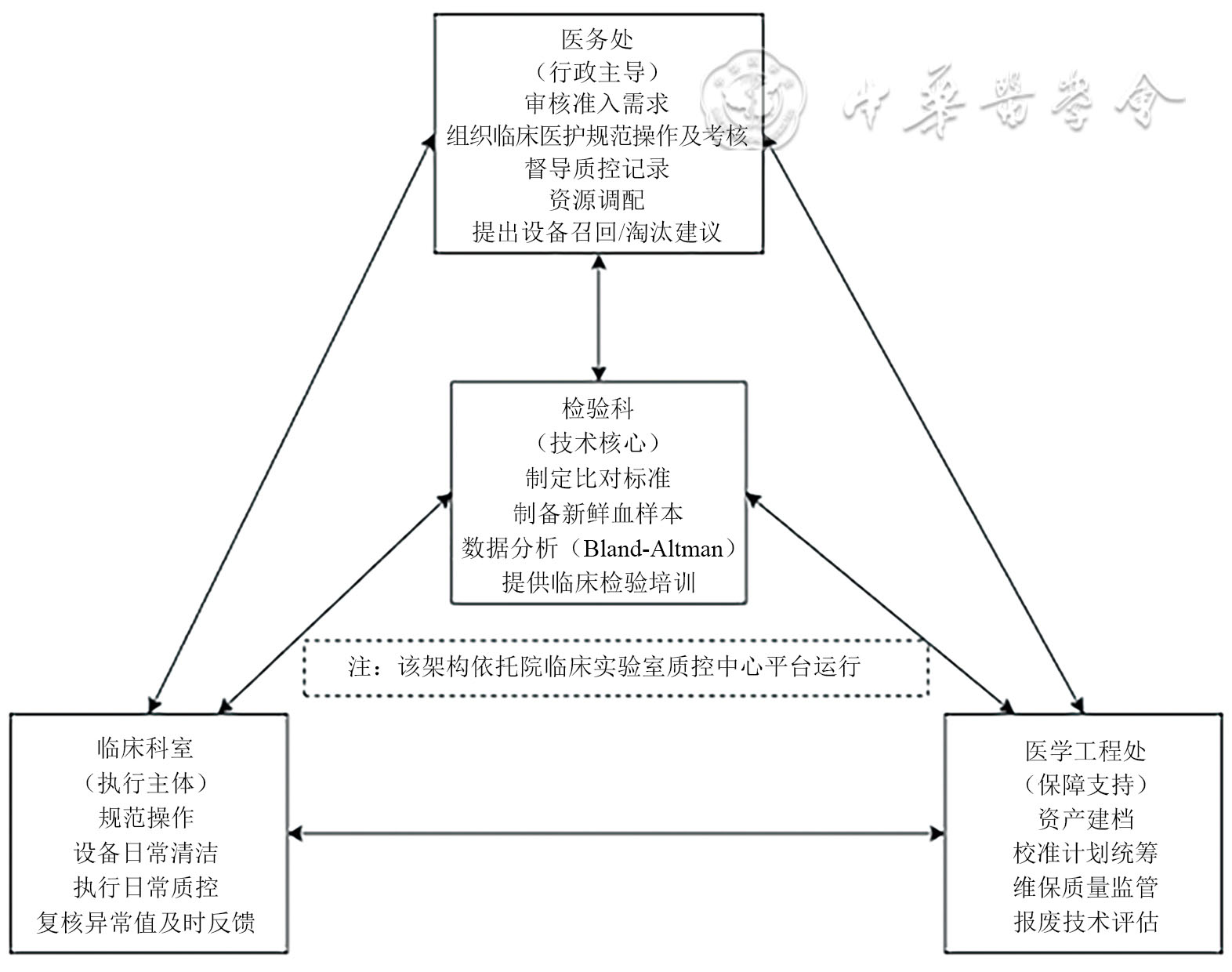

图1 管理架构
表1 各品牌POCT血糖仪检测合格率/%(例数/总例数)
表2 不同品牌POCT血糖仪与生化分析仪对比结果
表3 各品牌POCT血糖仪与生化仪一致性分析参数比较

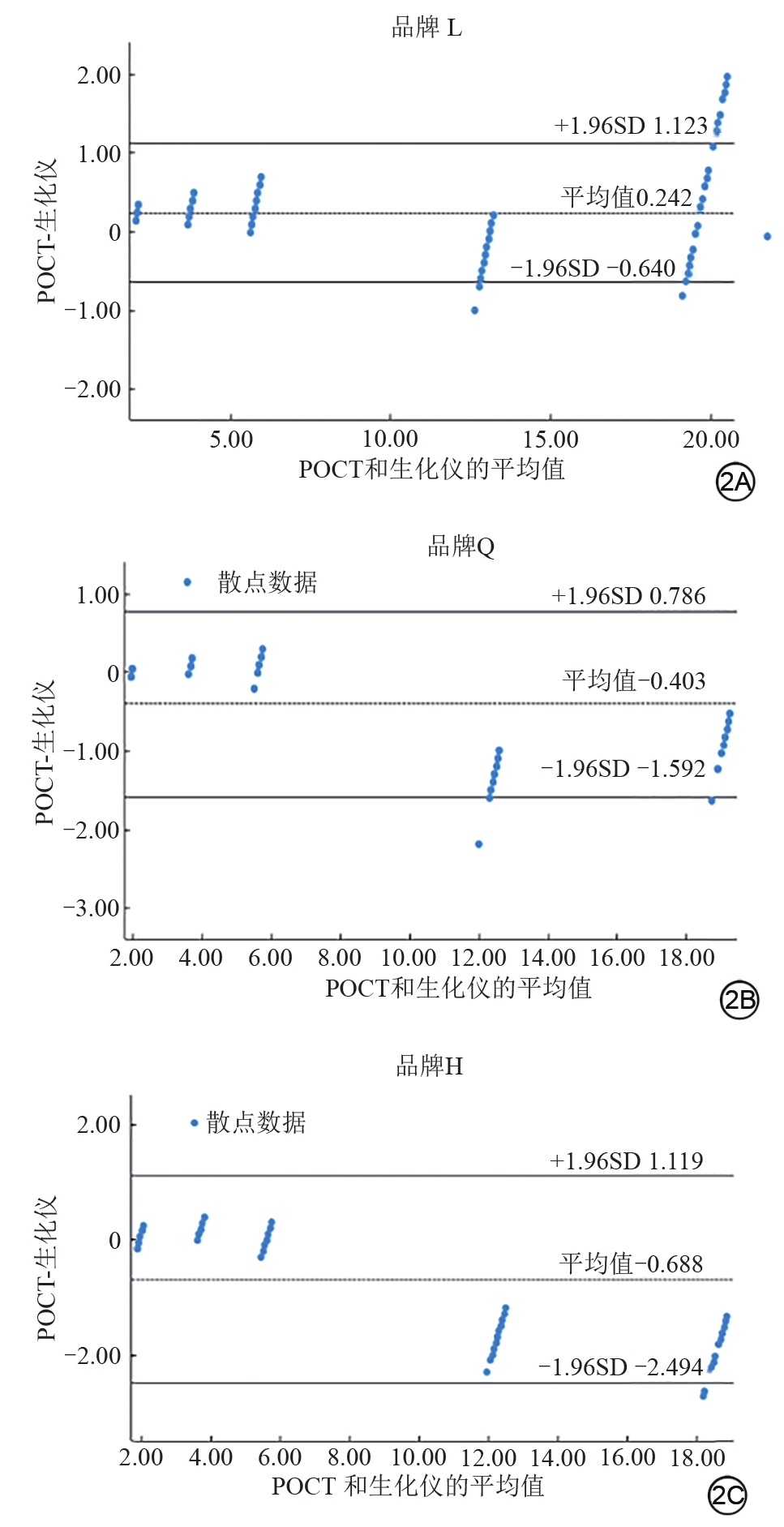

图2 各品牌POCT 血糖仪与生化仪一致性的Bland-Altman 图 注:2A. 品牌L;2B. 品牌Q;2C. 品牌H;
1
娄娇, 王青, 蒋玲丽, 等. 长三角地区医学实验室检验同质化管理现状及对策[J]. 中国卫生资源, 2022, 25(5): 588-592.
2
续薇, 单洪丽, 孙瑞营, 等. 院内即时检测质量管理中常见问题及解决对策[J]. 中华检验医学杂志, 2021, 44(9): 781-785.
3
中国医疗保健国际交流促进会急诊医学分会. POCT院前质量管理规范专家共识[J]. 中华检验医学杂志, 2025, 48(5): 450-455.
4
RAI A, MARO J C, DUTCHER S, et al. Transparency, reproducibility, and replicability of pharmacoepidemiology studies in a distributed network environment[J]. Pharmacoepidemiology and drug safety, 2024, 33(6): e5820.
5
LOW H Q, MARKUS C, LOH T P, et al. Number of patient samples affected before error detection: Strategic implications for internal quality control and patient-based quality control practices[J]. Clinica chimica acta; international journal of clinical chemistry, 2025, 569: 120166.
6
O'CONNOR P D T, KLEYNER A. Practical reliability engineering[M]. 5th ed. Chichester: John Wiley & Sons, 2012: 35.
7
CAMPBELL S, GREENWOOD M, PRIOR S, et al. Purposive sampling: complex or simple? Research case examples[J]. Journal of research in nursing, 2020, 25(8): 652-661.
8
中华人民共和国国家卫生健康委员会. WS/T 781-2021 便携式血糖仪临床操作和质量管理指南[S]. 北京:中国标准出版社, 2021.
9
CLINICAL AND LABORATORY STANDARDS INSTITUTE (CLSI). EP23-A Laboratory quality control based on risk management; approved guideline[S]. Wayne, PA: CLSI, 2011.
10
BI H, CHEN Y, WU Y, et al. Residual safety margin-based risk stratification for hospital-wide POCT glucose meters anchored to ISO 15197: Moving Beyond Pass-Fail[J]. Diagnostics, 2025, 15(24): 3220.
11
CLINICAL AND LABORATORY STANDARDS INSTITUTE(CLSI). Evaluation of commutability of processed samples; approved guideline-Third Edition: EP14-A3[S]. Wayne, PA: CLSI, 2014: 4.
12
GIAVARINA D. Understanding Bland Altman analysis[J]. Biochemia medica, 2015, 25(2): 141-151.
13
RAMLJAK S, LOCK J P, SCHIPPER C, et al. Hematocrit interference of blood glucose meters for patient self-measurement[J]. Journal of diabetes science and technology, 2013, 7(1): 179-89.
14
周雨桐, 刘亚平. POCT快速血糖仪与生化分析仪血糖检测结果的比对分析[J]. 中国医疗器械信息, 2025, 31(12): 23-26.
15
SANDBERG S, COSKUN A, CAROBENE A, et al. Analytical performance specifications based on biological variation data - considerations, strengths and limitations[J]. Clinical chemistry and laboratory medicine, 2024, 62(8): 1483-1489.
16
AHN H S, LENET T, GILBERT R W D, et al. Accuracy of point-of-care testing devices for haemoglobin in the operating room: meta-analysis[J]. Oxford university press Open, 2024, 8(1): zrad148.
17
中华医学会糖尿病学分会, 朱大龙, 郭立新. 中国糖尿病防治指南(2024版)(节选二)[J].中国实用内科杂志, 2025, 45(11): 927-951.
18
中国老年2型糖尿病防治临床指南编写组, 中国老年医学学会老年内分泌代谢分会, 中国老年保健医学研究会老年内分泌与代谢分会, 等. 中国老年2型糖尿病防治临床指南(2022年版)[J]. 中国糖尿病杂志, 2022, 30(1): 2-51.
19
SHAW J L V, ARNOLDO S, BEACH L, et al. Establishing quality indicators for point of care glucose testing: Recommendations from the canadian society for clinical chemists point of care testing and quality indicators special interest groups[J]. Clinical chemistry and laboratory medicine, 2023, 61(7): 1280-1287.
20
郭晓敏, 周佳烨, 赖洁楠. POCT质量控制管理体系的构建及实践[J]. 现代医院管理, 2025, 23(6): 32-35.
21
CANFELL O J, WOODS L, MESHKAT Y, et al. The impact of digital hospitals on patient and clinician experience: Systematic review and qualitative evidence synthesis[J]. Journal of medical Internet research, 2024, 26: e47715.
22
中华医学会检验医学分会, 中国医学装备协会检验医学分会. 即时检测(POCT)信息化质量管理中国专家共识[J]. 中华检验医学杂志, 2020, 43(5): 562-566.
23
LUAN X, KE L, FENG M, et al. Risk management in POCT blood glucose monitoring: FMEA approach aligned with ISO 15189:2022[J]. PLoS One, 2025, 20(3): e0319817.
24
XIE C, ZHANG J, LUO J, et al. FOCUS-PDCA can effectively optimize the critical value of test items: FOCUS-PDCA može efikasno da optimizuje kritičnu vrednost ispitivanja[J]. Journal of medical biochemistry, 2022, 41(3): 347-354.
25
CHEN J, CAI W, LIN F, et al. Application of the PDCA cycle for managing hyperglycemia in critically ill patients[J]. Diabetes ther, 2023, 14(2): 293-301.
26
MEEHAN C D, SILVESTRI A, STREET E D. Improving blood glucose monitoring in a hospital setting using the PDCA approach. Plan, do, check, act cycle[J]. Journal of nursing care quality, 1993, 7(4): 56-63.
27
FOSTER K, DESPOTIS G, SCOTT M G. Point-of-care testing: Cost issues and impact on hospital operations[J]. Clinics in laboratory medicine, 2001, 21(2): 269-284.
28
MARQUANT M, GESSLER S, DIECHTIEROW M, et al. Evaluation of potential interference caused by endogenous substances, drugs, and variations of blood sample properties and environmental conditions, with blood glucose concentrations measured with a new strip-based blood glucose monitoring system[J]. Journal of diabetes science and technology, 2025 May 31:19322968251319344.Online ahead of print.
29
国家急诊医学专业医疗质量控制中心, 北京市急诊质量控制和改进中心, 中国医师协会急诊医师分会, 等. 即时检测急诊临床应用专家共识[J]. 中华急诊医学杂志, 2024, 33(1): 11-19.
30
郗晓婧, 钟华, 杨媛媛. POCT质量管理体系建设方案与成效分析[J]. 中国卫生质量管理, 2021, 28(7): 29-32.
